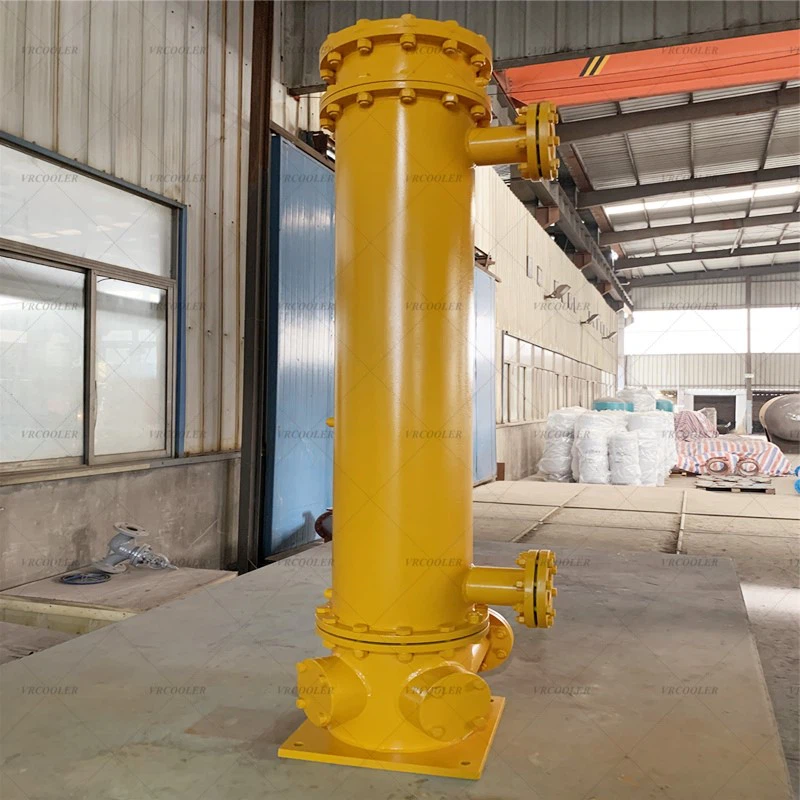

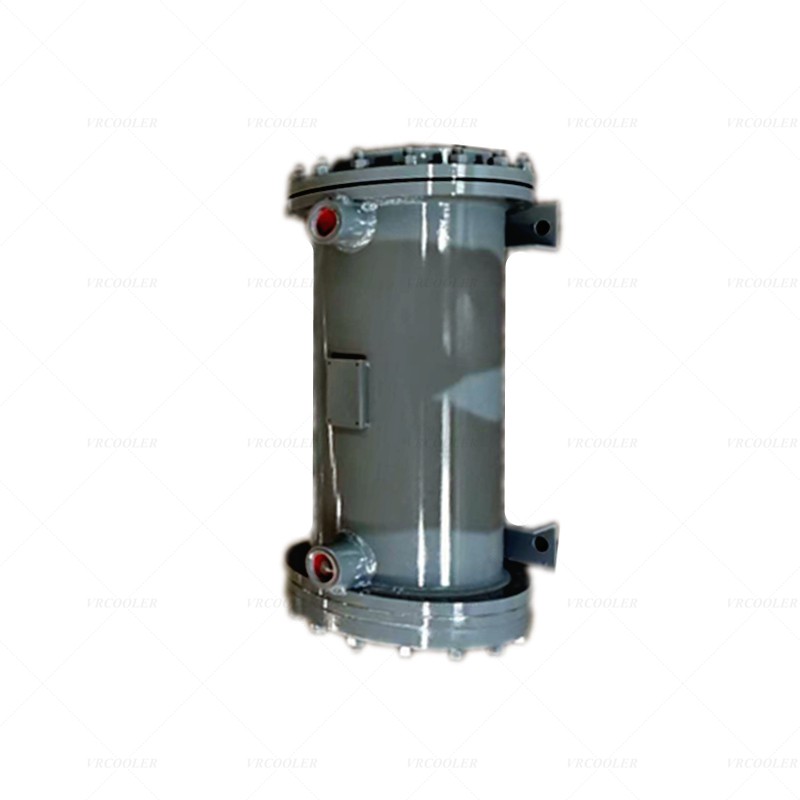

Vertical Oil Cooler

Vertical Oil Cooler Structural Features

Vertical Structure: The cooler is installed vertically, occupying minimal floor space, making it suitable for installation in areas with limited space but sufficient vertical clearance.

Tube Bundle Arrangement: The tube bundle is typically arranged vertically within the shell, with both ends secured to the tube sheets. This arrangement facilitates heat exchange between the oil and cooling medium in the vertical direction, promoting uniform distribution and flow of the fluid.

Tube Sheet Design: The tube sheet is used to secure the tube bundle, ensuring its stability and密封性. In vertical oil coolers, the tube sheet must withstand the weight of the tube bundle and the pressure of the fluid, so it is typically made from high-strength materials.

Baffle plates and support plates: Baffle plates and support plates are installed inside the shell. Baffle plates guide the direction of oil flow, causing it to flow along a zigzag path within the shell, thereby increasing the contact time and area between the oil flow and the tube bundle, and improving heat exchange efficiency. Support plates are used to support the tube bundle, preventing vibration and deformation during operation.

Vertical Oil Cooler Working Principle

Heat Exchange Process: High-temperature oil enters the cooler from the top and flows downward along the outer surface of the tube bundle under the influence of gravity and pressure difference. Simultaneously, the cooling medium (such as cooling water) enters the interior of the tube bundle from the bottom of the cooler, undergoing counter-current heat exchange with the oil outside the tubes. The heat from the oil is transferred to the cooling medium, lowering the oil temperature while raising the cooling medium temperature, thereby achieving the cooling objective.

Temperature Control: By adjusting the flow rate of the cooling medium, the cooling temperature of the oil can be precisely controlled. For example, in power systems, the cooling water flow rate of the oil cooler can be automatically adjusted according to the required inlet oil temperature of the bearings, ensuring that the oil temperature remains within the normal range of 35-45°C.

Vertical Oil Cooler Advantages

Efficient Space Utilization: The vertical design allows the cooler to provide a large heat exchange area while occupying a small footprint, making it particularly suitable for compact spaces such as small power plants and ship engine rooms.

Easy installation and maintenance: The vertical installation method facilitates installation, disassembly, and maintenance operations. The tube sheet is fixed at one end and floating at the other, and the removable tube bundle and water chamber cover design allow for convenient cleaning, inspection, and maintenance of the cooler during operation.

Good vibration resistance: Compared to horizontal oil coolers, vertical oil coolers have a lower center of gravity and a more stable structure, offering better vibration resistance during operation and the ability to adapt to environments with vibration.

Vertical Oil Cooler Application areas

Power industry: Used for cooling lubricating oil in turbines, generators, and other equipment to ensure normal bearing operation and prevent equipment failures caused by overheating.

Mechanical industry: Used in the hydraulic and lubrication systems of various machinery such as machine tools, compressors, and injection molding machines to cool hydraulic oil and lubricating oil, thereby improving equipment efficiency and service life.

Transportation industry: Used in transportation vehicles such as ships, automobiles, and aircraft to cool engine lubricating oil, transmission oil, etc., ensuring the stable operation of the power system.
