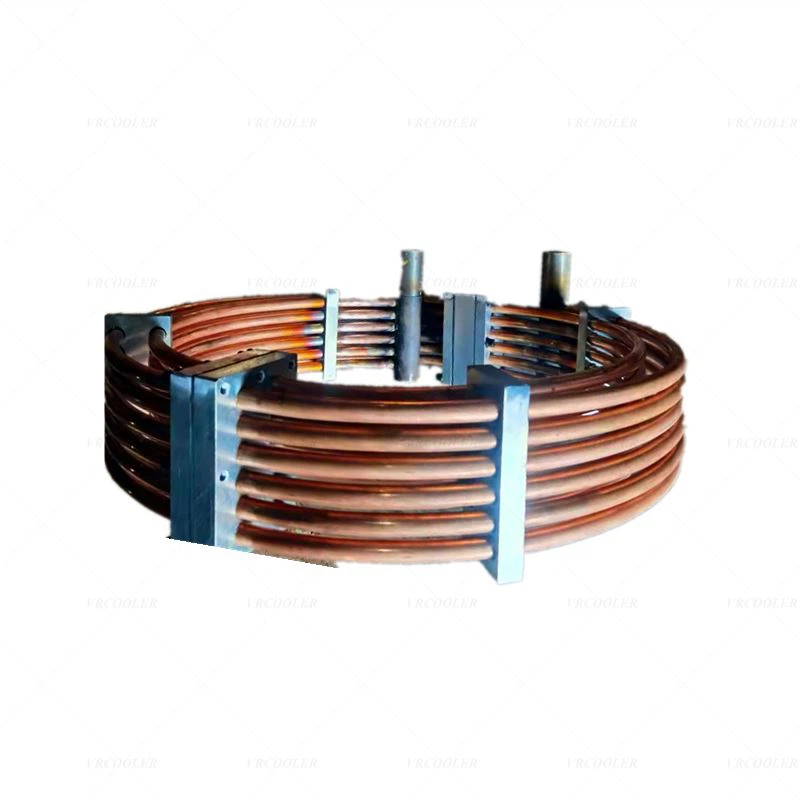

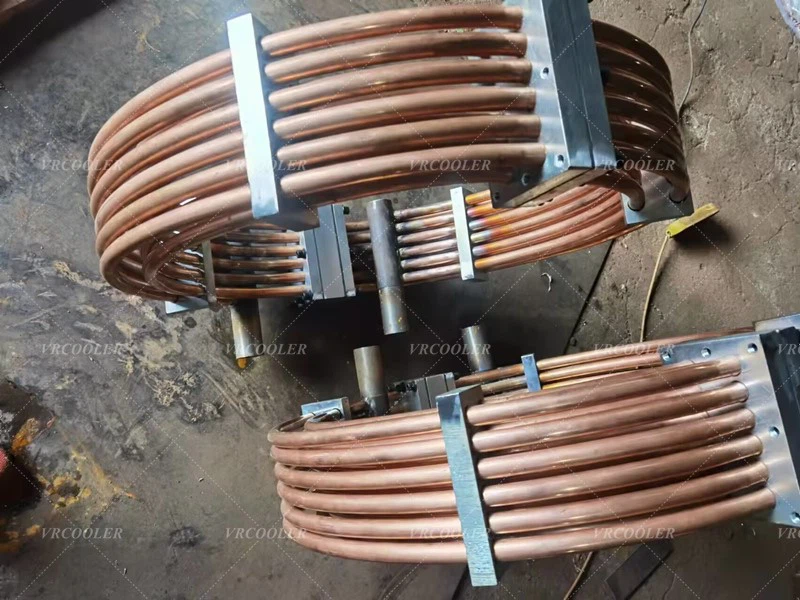

Thrust Bearing Oil Cooler

A thrust bearing oil cooler is a specialized heat exchange device designed to cool the lubricating oil used in thrust bearings, which are critical components in various rotating machinery (such as turbines, generators, compressors, and large motors). Its primary function is to maintain the oil at an optimal temperature, ensuring the thrust bearing operates efficiently and reliably.

Thrust Bearing Oil Cooler Core Functions
Temperature Regulation: Thrust bearings endure significant axial loads and friction during operation, generating substantial heat. The cooler absorbs excess heat from the lubricating oil, preventing oil degradation (e.g., viscosity reduction, oxidation) and bearing overheating, which could lead to wear, seizing, or catastrophic failure.
Lubrication Preservation: By keeping oil within a safe temperature range (typically 40–50°C for most industrial applications), the cooler maintains the oil's lubricating properties, ensuring effective film formation between moving parts of the bearing.

Thrust Bearing Oil Cooler Working Principle
Hot Oil Inflow: Lubricating oil, heated by friction in the thrust bearing, enters the cooler (typically at 60–80°C).
Heat Exchange: The hot oil flows through the cooler's shell (or plate channels) and transfers heat to the cooling medium (water/air) circulating in adjacent tubes or channels.
Cooled Oil Return: The cooled oil (at 40–50°C) exits the cooler and is recirculated back to the thrust bearing to repeat the lubrication and cooling cycle.
Coolant Disposal: The heated cooling medium (e.g., water) is either discharged or recirculated through a secondary cooling system (e.g., a cooling tower).

Thrust Bearing Oil Cooler Applications
Power Generation: Cooling oil for thrust bearings in steam turbines, gas turbines, and generators.
Heavy Industry: Used in compressors, pumps, and rolling mills where axial loads on bearings are high.
Marine Engineering: Cooling systems for thrust bearings in ship propulsion systems (e.g., marine turbines).
