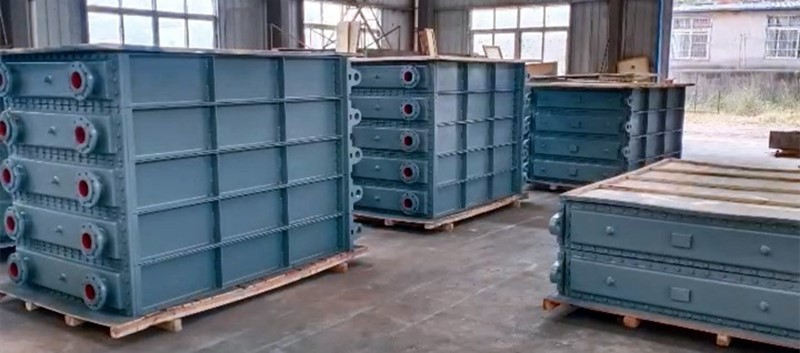

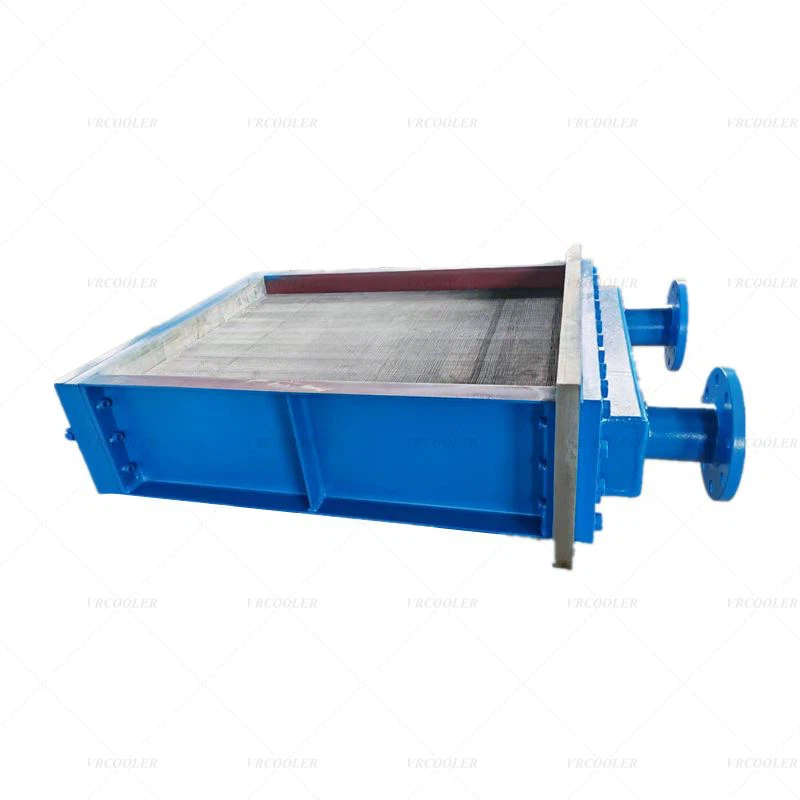

Stator Air Cooler

Heat Dissipation and Cooling: During operation, the stator windings, stator core, and other components of a generator generate a significant amount of heat due to resistance losses, magnetic losses, and other factors. The primary function of the stator air cooler is to dissipate this heat, preventing the stator temperature from becoming excessively high. This ensures the generator's insulation performance and mechanical integrity, thereby guaranteeing safe and stable operation.

Improving Efficiency: By effectively cooling the generator, its components are maintained within an appropriate temperature range, reducing energy losses caused by overheating and improving the generator's power generation efficiency.

Structural Components

Cooling Tubes: Typically made from materials with excellent thermal conductivity, such as copper tubes or copper-nickel alloy tubes, these tubes allow cooling water to flow through them and exchange heat with the external hot air.

End caps: Located at both ends of the cooler, they seal the cooling tubes, enabling cooling water to circulate within the tubes, and also serve to connect the cooling water piping.

Tube sheets: Used to secure the cooling tubes, ensuring their precise positioning, and dividing the internal space of the cooler into separate chambers, guiding the cooling water to flow along the designed path.

Fins: Installed on the exterior of the cooling tubes, they increase the contact area between the tubes and air, enhancing heat exchange efficiency.

Frame: Supports and secures all components of the cooler, forming an integrated structure to ensure stability and strength.

Material Selection

Cooling tube materials: Typically made of copper, aluminum, stainless steel, or titanium.

Copper offers excellent thermal conductivity and corrosion resistance but is costly; aluminum has good thermal conductivity, is lightweight, and cost-effective but has relatively weaker corrosion resistance; stainless steel offers superior corrosion resistance and mechanical strength but has slightly poorer thermal conductivity; titanium has extremely high corrosion resistance and strength but is expensive.

Fin Material: Typically made of aluminum or copper to increase heat dissipation area and improve cooling efficiency. Aluminum fins are lightweight and cost-effective, making them widely used; copper fins have better thermal conductivity but are more expensive.
