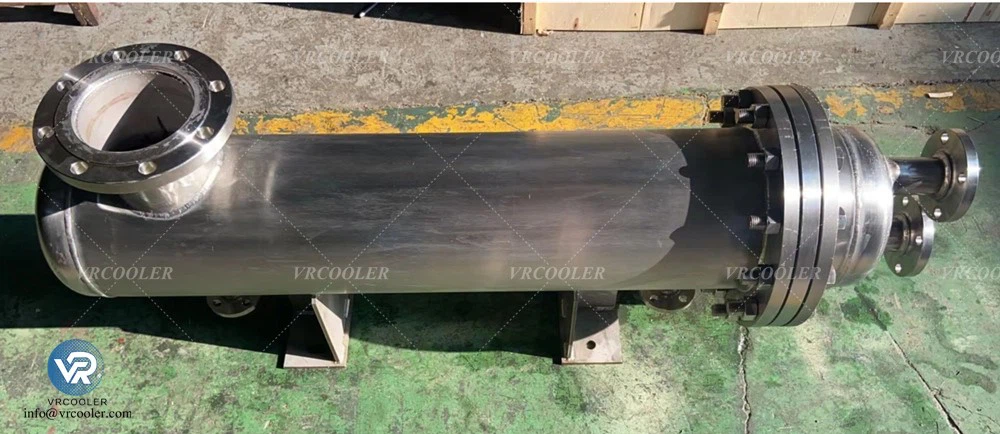

Stainless Steel Tubes Single-Pass Heat Exchanger For Cooling Water in An Extruder
Stainless Steel Tubes Single-Pass Heat Exchanger for Cooling Water in an Extruder
Stainless steel tubes single-pass heat exchanger is the ideal thermal solution for cooling water circulation in plastic extruders, rubber extruders, and industrial extrusion production lines. It stabilizes process water temperature, ensures consistent extrusion quality, and protects extruder barrels, screws, and hydraulic systems from overheating.
Working Principle
In an extruder production process, continuous operation generates massive heat from the screw barrel, gearbox, and hydraulic station.The single-pass shell and tube heat exchanger uses cooling water to exchange heat with circulating process water.Stainless steel tubes serve as the heat transfer medium, allowing fast heat dissipation in a single-pass flow route, keeping extruder cooling water steadily within 28–35°C for stable production.
Product Structure & Design
Single-pass straight tube design: Simple flow path, low pressure drop, not easy to block
Heat transfer tube: 304 / 316L stainless steel tubes, anti-rust, anti-scale, anti-corrosion
Shell material: Carbon steel or stainless steel optional
Fixed tube sheet structure: Compact, suitable for installation in limited extruder plant space
Full single-pass layout: Easy for water flow circulation and pipeline matching
Core Advantages
Stainless steel tube anti-corrosion: Perfect for long-term cooling water circulation, resisting rust, scaling and water medium corrosion.
Single-pass low resistance design: Smooth water flow, low pump load, stable flow rate, suitable for 24-hour continuous extruder operation.
Stable temperature control: Precisely maintain cooling water temperature, avoid product deformation, bubble and uneven extrusion output.
Easy cleaning & low maintenance: Straight single-pass tube structure convenient for regular flushing and scale removal.
Customized match: Custom heat exchange area, tube diameter, flow rate and interface size to fit all types of plastic and rubber extruders.
Application Scenarios
Plastic extruder cooling water circulation system
Rubber extruder barrel and screw cooling
Extruder hydraulic station oil & water cooling
Granulator and pelletizer process water cooling
Chemical fiber extrusion production line cooling system
