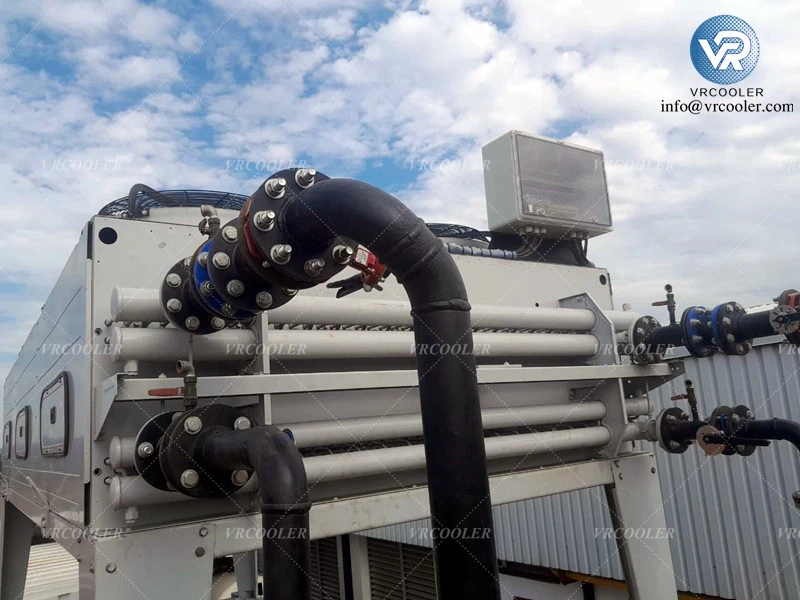

Dual-Circuit Cooling Radiator: The Ultimate Thermal Management Solution For Gas-Piston Units
As gas-piston units become increasingly critical in industrial power generation, CHP (Combined Heat and Power) systems, and renewable energy projects, the demand for reliable, efficient thermal management solutions has never been higher. Today, we are proud to launch our dual-circuit cooling radiator-a bespoke design engineered specifically to meet the unique thermal demands of gas-piston units, delivering unmatched stability, energy efficiency, and long-term performance.
Gas-piston units operate under high loads, generating significant heat across multiple components-from the engine block and cylinder heads to turbochargers and intercoolers. A single-circuit cooling system often struggles to balance the distinct temperature requirements of these components, leading to overheating, reduced efficiency, or premature wear. Our dual-circuit cooling radiator solves this challenge by separating high-temperature (HT) and low-temperature (LT) cooling loops, ensuring each critical part of the gas-piston unit operates within its optimal temperature range.
Why Dual-Circuit Design is Essential for Gas-Piston Units
Gas-piston units rely on precise thermal control to maintain power output, reduce emissions, and extend service life. The dual-circuit configuration addresses the core limitations of single-circuit systems by targeting two key thermal zones:
High-Temperature (HT) Circuit: Specifically designed to cool the engine's cylinder jackets, cylinder heads, and engine block-components that operate at elevated temperatures (typically 85–95°C). This circuit prevents overheating, protects engine integrity, and ensures stable combustion even under full load.
Low-Temperature (LT) Circuit: Focused on cooling the turbocharger intercooler (charge air cooling) and lubricating oil, which require lower operating temperatures (35–45°C). By optimizing charge air temperature, the LT circuit enhances combustion efficiency, boosts power output, and reduces fuel consumption and emissions.
This separation eliminates thermal cross-interference, ensuring each circuit operates at peak efficiency. Unlike off-the-shelf radiators, our dual-circuit design is tailored to the specific heat load, fluid flow, and installation constraints of gas-piston units-whether for small-scale industrial generators or large CHP plants.
Key Features of Our Dual-Circuit Cooling Radiator
1. Precision-Engineered Dual-Core Design
Our radiator features two independent cooling cores-one for the HT circuit and one for the LT circuit-each optimized for their respective temperature ranges. We use high-efficiency copper tubes with aluminum fins to maximize heat transfer efficiency, while minimizing pressure drop to reduce the load on the unit's cooling pumps. The cores are modular, allowing for easy maintenance and replacement if needed.
2. Heavy-Duty, Corrosion-Resistant Construction
Gas-piston units often operate in harsh industrial environments-from high-humidity coastal areas to dusty industrial sites. Our dual-circuit radiator is built to withstand these conditions with a galvanized steel frame, corrosion-resistant core materials, and optional marine-grade coatings. The design also includes vibration-resistant mounting brackets to handle the operational vibrations of gas-piston units, ensuring long-term reliability.
3. Smart VFD Fan Control for Energy Savings
Equipped with variable frequency drive (VFD) axial fans, the radiator automatically adjusts fan speed based on real-time fluid temperatures in both circuits. This intelligent control reduces energy consumption by up to 35% compared to fixed-speed fans, lowering operational costs while maintaining optimal cooling performance. A redundant fan configuration is also available for 24/7 power generation applications, ensuring continuous cooling even if one fan fails.
4. Plug-and-Play Compatibility
Designed for seamless integration with most gas-piston unit models (including Jenbacher, Caterpillar, and Waukesha), our dual-circuit radiator comes as a pre-assembled package. It includes all necessary components-cooling cores, fans, expansion tanks, interconnecting piping, and a control panel-eliminating on-site welding and reducing installation time by up to 50%.
Applications
Our dual-circuit cooling radiator is the ideal thermal management solution for gas-piston units in a wide range of industries:
CHP Plants: Combined heat and power systems using natural gas, biogas, or landfill gas.
Industrial Power Generation: Heavy-duty industrial facilities requiring continuous, reliable backup or primary power.
Renewable Energy: Biogas and waste-to-energy projects leveraging gas-piston units for power production.
Municipal & Commercial: District heating systems, data centers, and large commercial buildings with on-site power generation.
Why Choose Our Dual-Circuit Cooling Solution?
With over a decade of experience in engineering cooling systems for gas-piston units, we bring unmatched expertise to every custom design. Our dual-circuit radiator offers:
Optimal Performance: Tailored to the unique thermal load of your gas-piston unit, ensuring maximum efficiency and reliability.
Reduced Downtime: High-quality materials and precision manufacturing minimize maintenance needs and extend service life.
Cost Savings: Energy-efficient VFD fans and modular design lower operational and installation costs.
Global Support: End-to-end support from design and engineering to delivery and after-sales service, with 24/7 technical assistance.
Get Your Custom Dual-Circuit Cooling Radiator
Ready to upgrade your gas-piston unit's thermal management system? Contact our engineering team today for a free custom design consultation and quote. We deliver fully tested, plug-and-play radiator packages tailored to your specific gas-piston unit model, ensuring your system operates at peak efficiency-now and for years to come.
