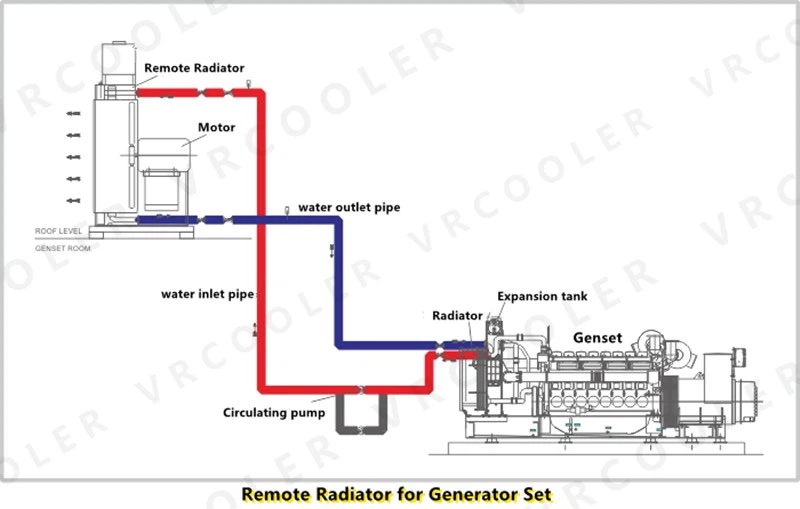

Design of the Remote Radiator of Gas Generator Set

The radiator of the gas generator set is an important part to ensure the normal operation of the generator set, which is mainly used for discharging the excess heat generated by the engine in the working process.

The following is an introduction to the design points and functions of the radiator of gas generator sets:

1. Function
Heat management: The radiator keeps the engine within the optimal operating temperature range by radiating the heat generated by the engine to the environment.
Prevent overheating: Effective heat dissipation prevents engine damage or performance degradation due to overheating.

2. Design Points
a. Radiator type
Water-cooled radiator: using water as cooling medium, suitable for most gas generator sets with good heat dissipation effect.
Air-cooled radiator: suitable for small or mobile generator sets, relying on air flow for heat dissipation.
b. Material selection
Corrosion-resistant materials: choose corrosion-resistant materials such as aluminium alloy or stainless steel to extend the service life of the radiator.
Good thermal conductivity: Ensure the radiator material has high thermal conductivity to improve the heat exchange efficiency.
c. Radiator Structure
Fin design: Increase the surface area of the radiator and adopt fin design to enhance air flow and heat exchange.
Fluid flow path: Optimise the flow path of coolant or air to ensure that the fluid or air can flow evenly and avoid dead spots.

3. Heat dissipation efficiency improvement
Fan design: Use high efficiency fans and increase airflow to improve heat dissipation.
Temperature control system: Install temperature sensors and control system to monitor the temperature in real time and automatically adjust the fan operation.

4. Maintenance and Management
Regular inspection: Establish a regular inspection system to ensure that the radiator is free of blockage, leakage or other faults.
Cleaning and maintenance: Regularly clean the surface of the radiator to remove dust and debris to maintain good heat dissipation performance.


5. Safety Considerations
Leakage detection: Ensure that the cooling system is well sealed with a leakage detection device to detect problems in time.
Safety valve design: Set up a safety valve in the coolant circulation system to prevent damage caused by excessive pressure.

The radiator of the gas generator set is a key component to ensure the efficient and safe operation of the generator set. Through reasonable design, material selection and maintenance, it can effectively improve the heat dissipation effect, prolong the equipment life and improve the power generation efficiency
