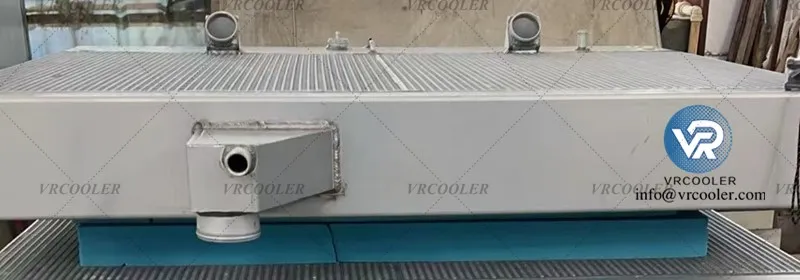

Compressor Aftercooler Not Draining – Troubleshooting & Solutions
Compressor Aftercooler Not Draining – Troubleshooting & Solutions
1. Quick Pre-Check (Safety First)
Shut down compressor, cut power, fully depressurize the system (0 bar on gauge).
Let unit cool down to avoid hot water/steam burns.
Locate drain point: aftercooler bottom drain port / integrated drain valve.
2. Main Causes & Fixes
Case 1: Manual Drain (Plug / Ball Valve)
Causes
Drain port blocked by sludge, rust, scale, oil sludge or debris
Valve stuck closed due to long-term disuse
Drain pipe/line is bent, blocked or installed uphill (water cannot flow out)
Solutions
Open the drain fully. If no flow, use a thin metal rod/wire to poke through the port to clear blockages.
For stuck ball valves: Operate the handle repeatedly to loosen internal parts; apply a little penetrating oil if needed.
Check drain piping: Ensure pipe slopes downward; straighten or replace blocked pipes.
Flush the aftercooler: Connect water hose to reverse flush the drain and internal passages.
Case 2: Automatic Drain Valve (Most Common Fault)
Type A: Pneumatic / Electronic Auto Drain
Common issues & fixes
Filter screen clogged (inlet strainer)
Most auto drains have a small built-in screen. Unscrew the valve inlet, take out the screen, clean dirt/oil/scale with water, reinstall.
Internal piston/diaphragm stuck
Debris causes the valve to stay closed. Tap the valve body gently; or disassemble (follow manual), clean internal components, check for worn seals. Replace seal kit if damaged.
No air supply (pneumatic drain)
Check air supply line to the drain valve: ensure pressure is normal (0.4–0.6 MPa), no line blockage.
Power failure (electronic drain)
Check wiring, fuse and power socket. Confirm LED indicator lights up normally.
Timer setting error
Adjust drain interval & drain duration: Too short = no water drained; extend open time.
Type B: Float-Type Auto Drain
Float stuck / jammed
Debris locks the float in the upper position (valve stays closed). Remove valve cover, clean chamber and float, ensure it moves freely up and down.
Float damaged / leaky
If float takes in water and sinks, replace the float or entire drain valve.
Case 3: System-level Problems (Water exists but cannot reach drain)
Aftercooler installed incorrectly
The cooler is tilted the wrong way; condensed water cannot flow to the bottom drain port. Re-level or reposition the unit.
Excessive oil mixed in condensate
Compressor oil coats internal surfaces, traps water and clogs passages.
Drain all fluid completely; clean cooler interior with degreaser.
Check compressor for oil carry-over fault.
Severe scaling / limescale (water-cooled aftercooler)
Hard water forms thick scale inside tubes/chambers, blocking water flow. Use dedicated descaling chemical to flush the cooler.
3. Preventive Maintenance Tips
Operate manual drains daily to avoid sticking and blockage.
Clean auto drain strainer every 2–4 weeks; overhaul internal parts every 6–12 months.
Keep drain lines short and sloped downwards, no loops or high points.
Treat cooling water (add softener) for water-cooled units to reduce limescale.
Regularly check compressor oil separation performance to reduce oil contamination in condensate.
4. When to Replace the Drain Valve
Internal diaphragm/piston cracked, repeated leakage or blockage after cleaning.
Float mechanism completely failed.
Valve body heavily corroded.
