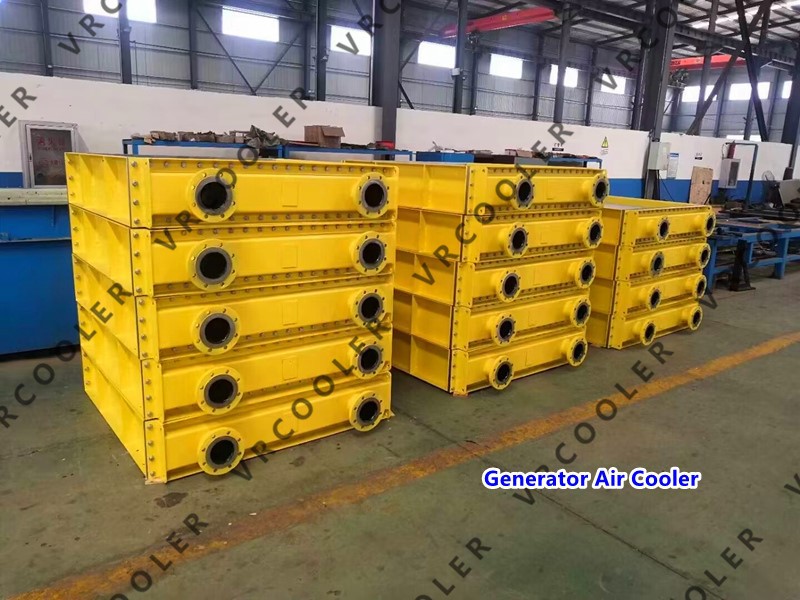

Generator Air Cooler Set

Generator Air Cooler Set
Heat Exchange Capacity 85 kW
Operating Pressure 0.2 - 0.3 Mpa
Water Inlet Temperature ≤ 30 ˚C
Water Consumption 30 m3/h
Air Quantity 2.6 m3/s
Dimension (Lx H x W) 1410x300x1210 mm

A Generator Air Cooler Set, also known as a generator air cooling system or generator radiator, is a crucial component in power generation systems. Its primary function is to dissipate the heat generated during the operation of an electrical generator.

Here's how it works and why it's essential:
Heat Generation: Electrical generators, especially large industrial ones, produce a significant amount of heat during their operation. This heat is generated due to electrical resistance in the windings and friction in moving parts.

Cooling Process: The generator air cooler set uses a cooling medium, usually air or a mixture of air and water, to dissipate this heat. Air is forced over the surface of the generator radiator, and as it passes through the fins or tubes of the radiator, it absorbs the heat from the generator.

Heat Exchange: The hot air inside the generator is in contact with the metal surfaces of the radiator. Heat is transferred from the metal to the air, cooling down the generator components.
