Generator Air Cooler For Hydroelectric Power Plant in Vietnam
Vietnam features a tropical monsoon climate with core harsh conditions that dictate special anti-corrosion & high-humidity cooling design：
- High ambient temperature: Generator floor max 34–35°C year-round
- Extreme humidity: Relative humidity up to 75%–84% all seasons, heavy condensation risk inside coolers
- Coastal hydropower plants (near Mekong Delta, central coastal areas): Salt fog, chloride corrosion (ISO 12944 C4/C5-M corrosion grade)
- Inland mountain hydropower: High rainfall, muddy river cooling water, limescale & sludge buildup
- Hydropower operating demand: 24/7 continuous base load, long overhaul intervals (8+ years leak-free requirement per local power bidding specs)
Mandatory Design Target Per Vietnam Hydropower Tender Standard
Cooling water inlet temp ≤28°C; after cooling, generator circulating air outlet ≤40°C; single cooler outage allows full rated generator output without overheating windings.

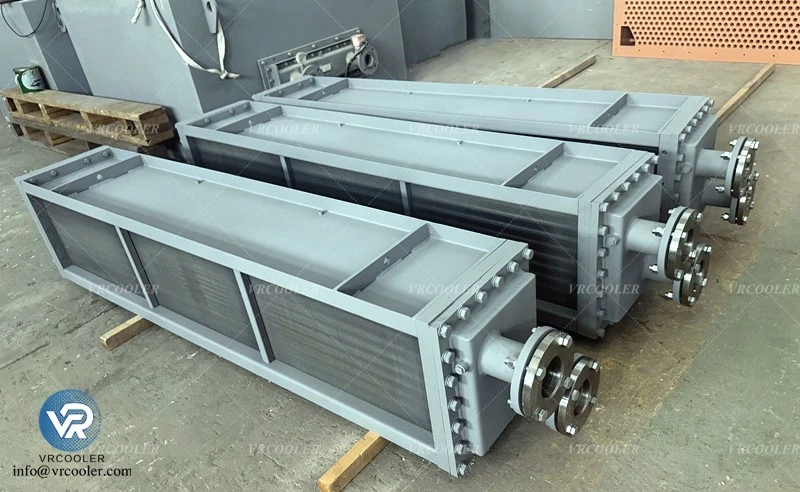

This vertical/horizontal fin-tube surface air cooler is core equipment for air-cooled vertical shaft hydro generators (10MW–600MW).
Working Principle
Hot circulating air absorbing stator/rotor heat flows across aluminum finned tube bundles; river cooling water circulates inside tubes to extract heat. Cooled dry air recirculates back into generator frame to stabilize winding temperature and extend insulation life.
Core Advantages for Vietnam Hydropower Owners & EPCs
✅ Tropical high-temperature & high-humidity customized design
Stable cooling performance under 35°C ambient + 84% RH, strict air outlet temperature control to prevent generator overload derating
✅ Dual anti-corrosion solution for inland & coastal sites
CuNi tube + heavy-duty fluorocarbon coating for coastal salt fog hydropower; cost-effective copper-aluminum scheme for inland mountain plants
✅ Low maintenance fit for remote Vietnamese mountain hydropower stations
Large removable water box cover, easy reverse flushing to clear river water sludge/limescale; reinforced anti-vibration tube bundle to resist long-term hydro generator vibration fatigue cracking
✅ 1:1 OEM interchangeable replacement
Manufactured per drawings, measured dimensions or original samples for Alstom, Dongfang, Harbin, local Vietnamese brand hydro generators; no generator foundation modification required during overhaul replacement
✅ Complete tender supporting documents
Supply material test certificates, hydrostatic pressure & helium leak test reports, corrosion coating inspection records, fully compliant with EVN (Vietnam Electricity) bidding acceptance standards
✅ Fast APAC logistics
Factory near Shanghai Port, sea freight transit to Ho Chi Minh / Haiphong port only 18–28 days, short lead time for emergency spare parts delivery
Main Application Scenarios in Vietnam
- Large vertical shaft hydro power stations: Son La, Hoa Binh, Tri An, Buon Kuop, Lai Chau
- Small-medium cascade mountain hydropower plants across Northern & Central Vietnam
- Coastal delta hydropower plants with brackish cooling water & salt fog atmosphere
- Old hydro unit cooling system renovation & spare cooler replacement projects
Information Required for Custom Quotation for Vietnamese Hydro Projects
1. Hydro generator rated capacity (MW), OEM brand & model
2. Cooling water condition: Inland fresh river / coastal brackish water, inlet temperature, water quality (chloride content)
3. Site location: Inland mountain or coastal salt fog area
4. Cooling air flow rate, heat load, required air outlet temperature
5. Installation space constraint, vertical/horizontal layout requirement
6. Local certification demand: ISO9001, EVN acceptance standard document requirement
Contact our power thermal engineering team for Vietnam hydropower customized design & competitive quotation.
