Over service time, air‑cooled aftercoolers and intercoolers suffer from fin fouling, internal scaling, gasket aging, tube corrosion, pressure drop and air leakage. Complete maintenance kits help plant teams execute overhaul, repair or direct replacement without hunting for separate spare parts. These kits apply to multi‑stage screw and piston air compressors for workshop, mining, gas station and manufacturing lines.

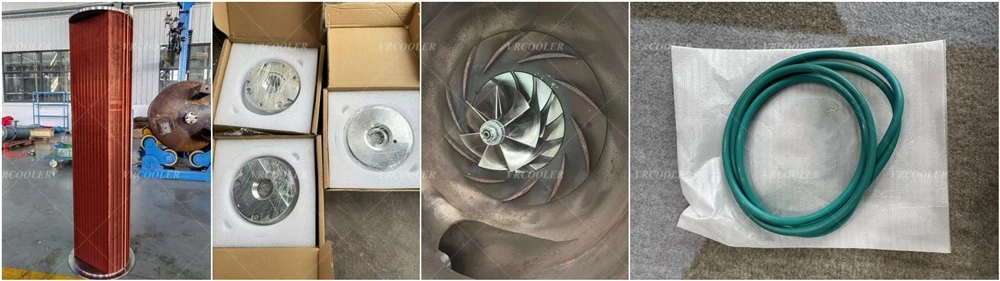

What is included in maintenance cooler kit
A full aftercooler / intercooler maintenance kit covers core heat‑exchange part plus sealing and fitting accessories:
Cooler core assembly Tube‑fin or plate‑fin (bar‑plate) heat exchanger core, matched with original CFM, working pressure, inlet‑outlet port dimension. Air‑cooled type for most industrial screw compressors.
Sealing set High‑temperature gaskets, oil‑resistant O‑rings, flange seals. Aging gaskets are the top cause of compressed‑air leakage during compressor service.
Connection hardware Matching bolts, clamps, adapter flanges, mounting brackets.
Optional auxiliary parts Condensate drain assembly, fan shroud, sealing gaskets for end cover, dust protection mesh.
Note: Intercooler sits between compression stages to boost compression efficiency; aftercooler installs after final compression stage to cool hot discharge air and condense moisture from compressed air. Two coolers share similar kit‑style maintenance workflow but cannot swap dimensions directly.
Common failure signs triggering kit replacement
Carry out maintenance or full‑kit replacement when you observe below symptoms:
Compressor discharge temperature keeps rising; over‑heat alarm appears frequently
High pressure drop across intercooler / aftercooler, reduced actual air output
Visible air leakage at flange joints, gasket blow‑out
Heavy fin clogging, internal fouling / scaling, cleaning cannot restore cooling performance
Tube corrosion, pin‑hole leakage after long‑term running in humid or dusty site
Step‑by‑step maintenance & replacement workflow
Safety lock‑out: Shut down compressor, release all internal pressure, cut power supply before disassembly.
Disconnect air piping, wiring for cooling fan, drain residual condensate inside cooler.
Remove old cooler assembly, discard aged gaskets and O‑rings (do not reuse old seals).
Fit new kit core, install brand‑new gaskets from the kit; torque bolts following equipment manual to avoid uneven sealing.
Re‑connect piping, double‑check all flange joints.
Restore power, run compressor under no‑load first. Inspect for air leakage, monitor discharge air temperature and pressure drop.
Confirm condensate drain works properly.
Preventive maintenance tips for longer service life
Clean external fin surface monthly by compressed‑air blowing, avoid dust and fiber block cooling airflow.
Perform internal inspection and chemical flushing once per year for heavy‑duty operating conditions.
Replace gaskets every major overhaul even if no visible leakage.
Keep ambient ventilation around cooler package, do not stack material to block cooling air intake.
VRCOOLER supply capability
VRCOOLER provides aftercooler and intercooler maintenance kits for mainstream air compressor brands. We support 1:1 replacement according to old‑part sample or drawing, covering tube‑fin and plate‑fin construction. Aluminum, copper‑tube or stainless‑steel material options for corrosive working environment.
Visit [email protected] to send your cooler dimension data for quotation.
